新的 推土机 XCMG Brand Earth-moving Machinery 230hp Bulldozers TY230 Dozers Bulldozer With Spare Parts

Warranty: 1 Year

Hydraulic Valve Brand: Kawasaki

Blade Capacity(m³): 4.3 4.5

ENGINE:

Max.Depth(mm): 545 530

Grade Ability(°): 30 30

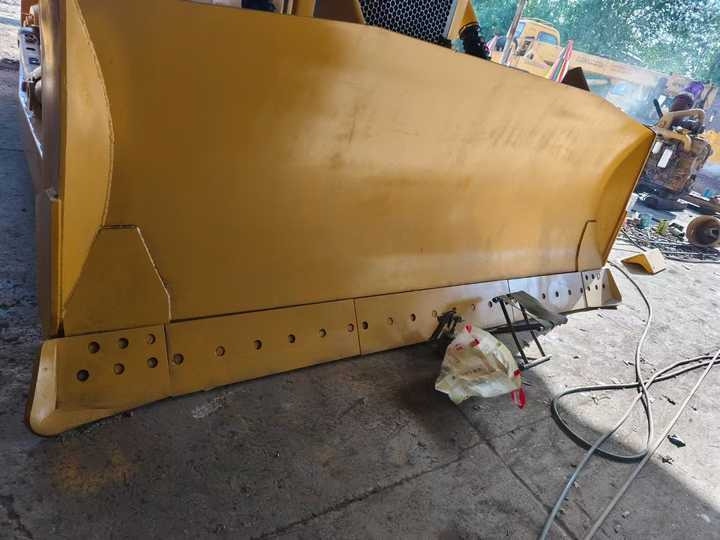

Weight Of Blade(kg): 2450 2350

Showroom Location: Canada, United States, Germany, Russia, Kazakhstan, Uzbekistan, Japan

Ground Pressure(MPa): 0.070 0.069

Min.Fuel Consumption(g/kW.h): 223 212

Model＆Type Cummins NT855-C280S10/Shangchai SC11CB200G2B1/Weichai WD 10G200E25,6-cylinder,in-line,vertical.water-cooled.4-stroke-cycle,turbo-charged,over valve directs injection:

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Applicable Industries: Farms, Construction works , Energy & Mining

Hydraulic Cylinder Brand: Kawasaki

Max.Lift(mm): 1095 1110

Place of Origin: Jiangsu, China

Model Number: TY230

Max.Pulling Force(KN): 142 142

Capability(m³/H)(Theoreticalvalue 40m): 247 247

Supply Ability: 10000 Unit/Units per Year

Blade WidthxHeight(mm): 3970x1037 3416x1145

Cylinder Number-BoreX Stroke(mm): Cummins ：6-139.7x152.4

Pitch adjustment (°): 55 55

Specification/Blade type: Angle Straight-tilt

Rated Revolution(rpm): 1850

Piston Displacement(L): 10.5 14

Flywheel Horsepower(HP): 160

Brand Name: XCMG

Max.lift above ground (mm): 1210 1210

UNIQUE SELLING POINT: Environmental, Long lifetime,Energy-saving,Large power engine

Min.Ground Clearance(mm): 400 400

Hydraulic Pump Brand: Kawasaki

Max.Torque(Nm/rpm): 830/1100 877/1250

Min.Tuming Radius(m): 3.2 3.2

Video outgoing-inspection: Provided

Marketing Type: Hot Product 2019

After-sales Service Provided: Engineers available to service machinery overseas

Max.drop below ground (mm): 535 540

Pitch Adjustment(°): 55 55

Track Gauge(mm): 1880 1880

Moving Type: Crawler Bulldozer

Warranty of core components: 1 Year

Max.tilt Adjustment(mm): ≥400 ≥860

Machinery Test Report: Provided

Starting Method: Starting motor 24V 7.5KW

Operating Weight(kg): 17700 17400

Dozing Capacity: 4.5-8.6m3

PRICES: 1 - 4 units: $90,000.00,>= 5 units: $30,000.00

Main features:

• Higher engine power reserves efficiency, bigger torque output, lower fuel consumption, while better reliability.
• Hydraulicly controlled drive, automatically speed regulating and non-stop gear shifting.
• The final drive uses triangle Spline and tip relief, crowned gear drive to enhance the balance and the stability of the load of transmission Part.
• The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.

Professional power:

• Pulse exhaust manifold for improving performance and emission.
• With a high torque reserve and a low speed under the maximum torque condition for a good adaptation.
• High quality cast iron and special designed valve guide for the seal performance and durability.
• Robust and precise balance design for crankshaft.
• Advanced turbocharger and water cooler technology.
