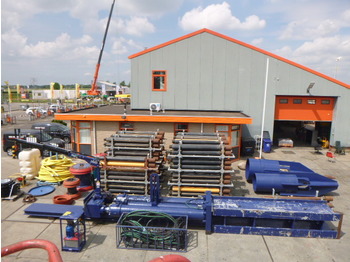

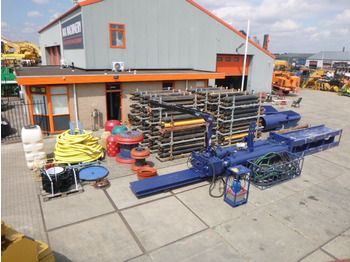

UNUSED PULLING UNIT FOR PIPELINE STEERABLE PIPE RAMMING & CRACKING
PULLING UNIT CAPACITY : 600 ton ( 13000 kg own weight )
REAR STEEL BEAM : 5000 kg
FASSI MICRO M15A 12 CRANE FOR LOAD OF RODS
HARDOX 450 DOUBLE CLAMP SYSTEM WITH ELECTRIC POWER UNIT
1 x PULLING HEAD SLEEVE Ø 48 inch / 122 cm - 2500 kg
1 x PULLING HEAD SLEEVE Ø 36 inch / 92 cm - 2000 kg
6 x PIPELINE PIGS
1 x PIPE PUSHER
17 x 15 meter ( 255 meter ) HIGH PRESSURE HOSE PARKER MHSA 123/17
WITH CAMLOCK STAINLESS COUPLINGS
123 x PULLING ROD 42CrMo4 : Ø 208 mm - 2600 mm LENGHT / 365 kg each
5 x START ROD - Ø 200 mm - 2600 mm LENGHT
TOTAL ROD LENGHT : 330 meter
TOTAL TRANSPORT WEIGHT OF ALL EQUIPMENT : 77500 kg
DESIGNED & PRODUCED IN THE NETHERLANDS
