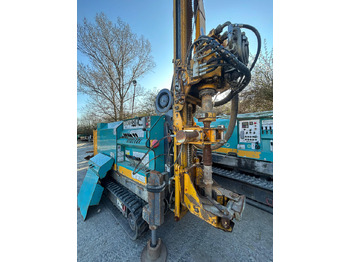

钻机 Geotec Rotomax M

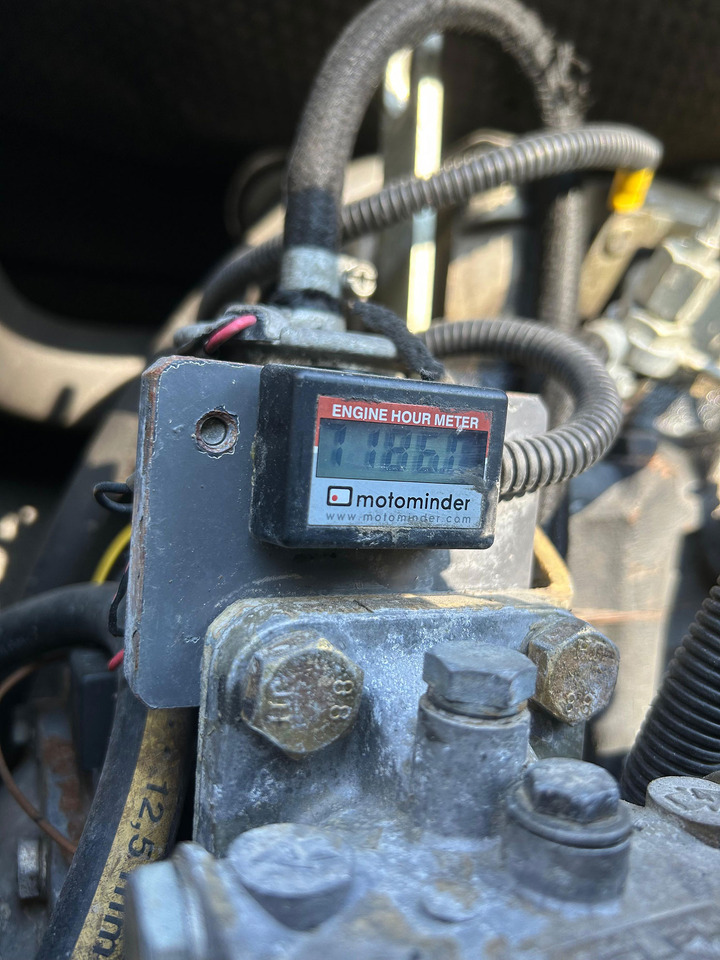

7,168 Hours

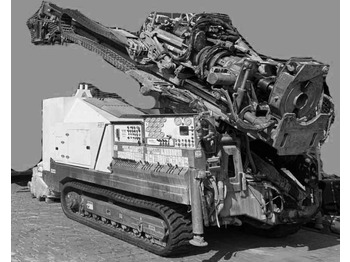

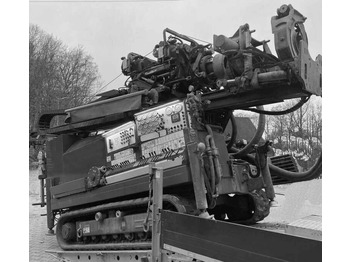

ROTOMAX M drilling rig for well construction & geothermal energy

Chassis:

Sandwich chassis with integrated fuel

Hydraulic oil tank for approx. 70 L diesel and approx. 150 L hydraulic oil, bio-oil Panolin HLP SYNTH 46

4-fold hydraulic outriggers; 4-roller rubber track undercarriage with 250 mm

Drive unit:

4-cylinder diesel engine 44 kW/60 HP,

Water-cooled with directly driven axial piston variable displacement pump,

Oil cooler

Oil supply/return filter

Soundproofing

Emissions standard according to EU Directive 97/68 Stage 3A

Basic hydraulic system:

Single-circuit, load-independent system (load sensing),

Proportional, directly or via remote control.

Maximum pump output 105 litres at 2400 rpm,

Max. system pressure: 190 bar. 3 pressure displays (system pressure, mud pressure, feed down).

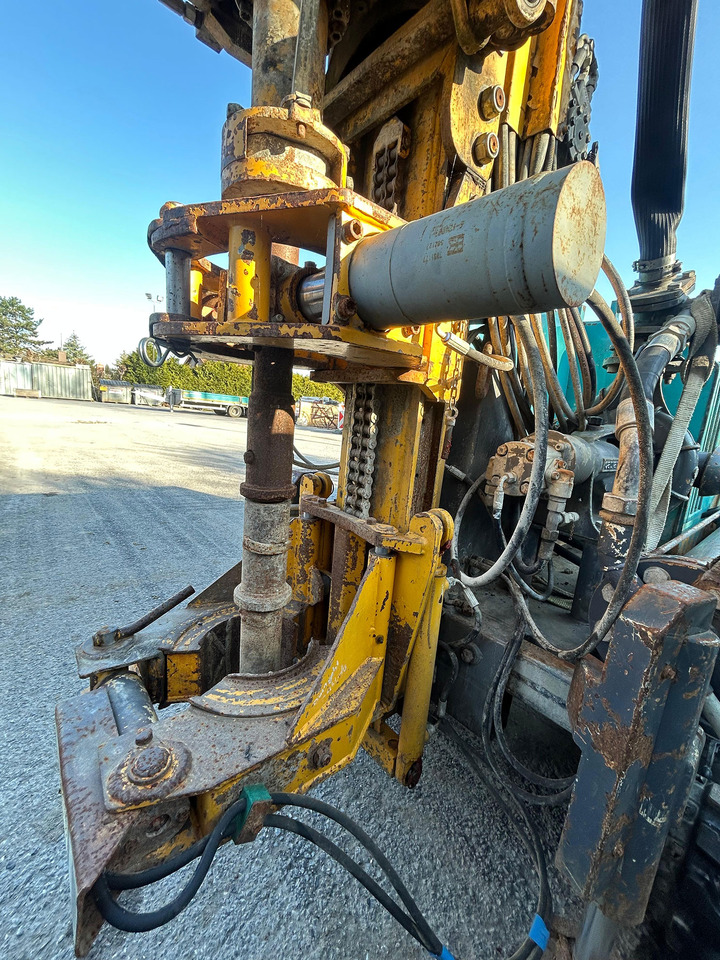

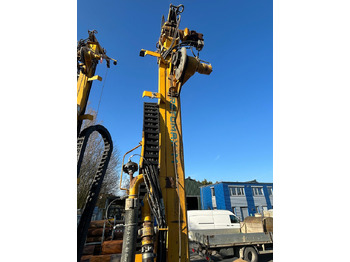

Standard drill mast:

Feed carriage guided by cam rollers, with interchangeable plate for mounting various drive heads.

Travel length: see dimensional sketch.

Tensile and compressive force 4,000 kg

Contact pressure throttled to approx.

1,000 kg so that the device cannot lift out from the mast side.

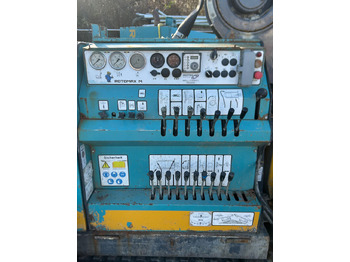

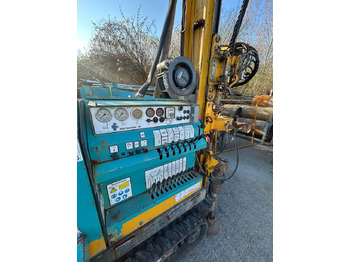

Manual control functions: “Main group”

Drill drive; drill feed; water pump; cable winch; cable impact mechanism; crawler chassis right; crawler chassis left, a total of 6 valves.

Manual drilling operation via control valves

Manual control function “Subgroup”

Supports up/down; track adjustment of the crawler chassis; mast erecting; mast extension; swivel drill head; support clamp; pipe press clamp; total of 10 valves

Mast-side support:

Support telescopic from 780 mm to 1400 mm to increase the stability of the drilling rig during drilling

Flushing head for direct directional drilling: Item 70

Drive pin PSG 76

Work lights on mast extension; 2 plug-in lights attached. Incl. wiring and electrical system

Mast extension with cable deflector M

Rotomax M extension 1000 mm hydraulically operated, deflection 500 mm from drilling axis, 6-500675

ROTOMAX M cable winch

Hydraulically driven free-spooling winch, with 40 m cable, 8 mm cable diameter, 1400 kg pulling force,

3-310020

Rotomax M L XL 1500 cable impact mechanism, lifting height-adjustable free-fall impact mechanism

Maximum stroke 500 mm, max. impact weight 300 kg

Impact rate 0-40 rpm

3,000kg Operating weight
