新的 移动破碎机 FABO MCK-65 MOBILE CRUSHING & SCREENING PLANT FOR GRANIT

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

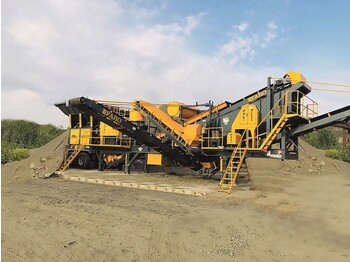

FABO MCK-65 is small efficient model of MCK series, those are a mobile type & closed circuit crushing and screening plants that is used for processing of hard materials such as basalt, granite, gabbro, dolomite and other types of hard stones. MCK-65 includes two stages of crushing process which is made by primary jaw crusher and cone crusher.

TECHNICAL SPECIFICATIONS:

Bunker: 12 m3

Plant Dimensions: 17800x4400x4550 mm

Production Capacity: 60-80 Tons Per Hour

1st Crusher: Jaw Crusher – 600x400 mm

2nd Crusher: Cone Crusher (FABO CC 100)

Maximum Feeding Size: 380 mm

Vibrating Screen Size and Deck: 1300x4000mm 3-4 decks

Total Motor Power: 185 Kw

Generator (optional): 300 kvA

MCK-65 İS A COMBİNATİON OF:

• Bunker(Hopper)

• Vibrating Grizzly Feeder (bypass)

• Primary Jaw Crusher

• Cone Crusher

• High Stroke Type Vibrating Screen

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Dust Suppression System

• Easy walking platforms for maintanance

• Diesel Generator (Optional)
