QINGDAO PROMISING 3.5CBM Concrete Mixer Truck with Self-Loading Bucket CML350 租赁

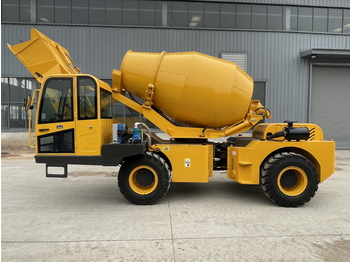

3.5CBM Concrete Mixer Truck with Self-Loading Bucket

Application:

Concrete mixer trucks, or transit mixers, are used to mix and transport ready-mix concrete from the batch plant to the job site. Wherever concrete is produced and moved, concrete mixer loaders are employed. Our self-loading mixer is rough terrain machine which can be operated by one person. The automatic feeding mixer truck comes with electronic weight batching and has a typical concrete output of 14 CBM/hour.

Features:

85kW (115.6HP) 4-cylinder Diesel Engine

Oversized Drum offers a maximum discharging capacity of 3.5CBM.

25km/h Driving Speed may fulfill running for a long distance.

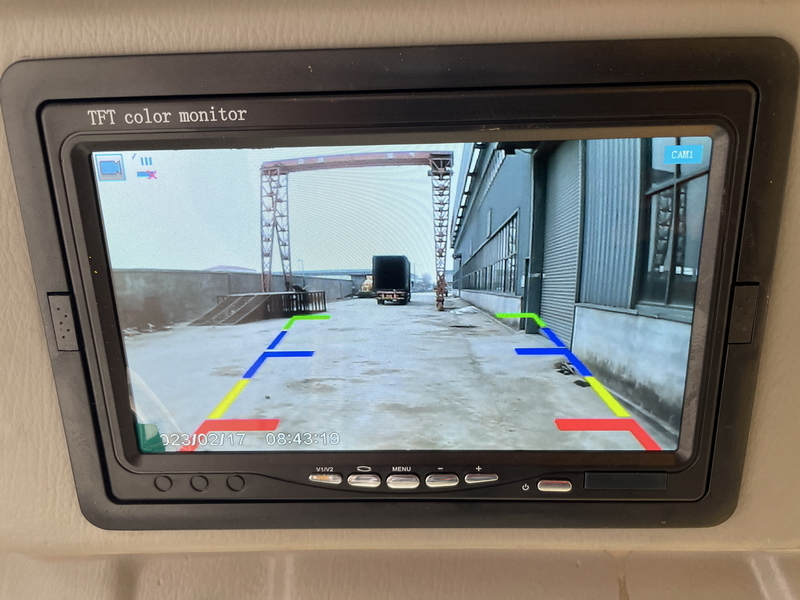

Dual Screen Backup (Reversing) Camera enables to avoid unnecessary collision to improve the service life of the truck.

Single Joystick Operation for feeding, rotation and major operations to make the operation more easier and simple.

Two Oversized Water Tanks may realize single mixing of cement and flushing of tank.

South Korea Imported and Custom-Designed Key Hydraulic Components improve the softness and stability of the truck, which are more compatible with this model.

Improved service life of the whole machine.

Using an Enlarged Drum Rotating Motor ensures more uniform mixture and faster discharging.

A Complete Dashboard and Instruments in Cabin enables the machine to complete all kinds of work, such as self-loading, self-unloading, mixing, discharging, and water adding etc.

4.75mm-thick Manganese Plate Made Drum makes it have better wear resistance and longer service life.

The whole machine uses Waterproof Circuits and LED Lamps.

French TOTAL Oil Product is applied to ensure the purity of hydraulic oil and prolong the service life.

Shaped Seamless Steel Pipe Made Frame by Riveted Welding has reasonable design and higher stability.

Widened Tires offer a higher load-bearing capacity.

Reasonable Design for Easy Container Loading.

Technical Specifications:

1. Geometric Volume of Mixing Drum: 5.3 CBM

2. Actual Mixing Volume of Mixing Drum: 3.5CBM

3. Residual Volume of Mixing Drum: Less than 0.8%

4. Mixing Drum Concrete Output: 14 CBM/hour, up to 4 batches per hour

5. Mixing Drum Mixing Speed: 3 gears both Forward & Reverse Rotation

6. Engine: 85 kW (115.6 HP)/2400rpm Four-cylinder, Inline, Water-cooled, Four-stroke YUCHAI YCD4J22T-115 Diesel Engine

7. Drive System Hydraulic Component: Imported from South Korea

8. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

9. Low Speed: 0-9.5 km/h

10. High Speed: 0-30 km/h

11. Drive Mode: 4-wheel Drive

12. Wheel Base: 1960 mm

13. Gradeability: 30 degree

14. Hydraulic System: Two Variable Stroke Pumps-Driving Vehicle and Mixer Separately, Two Constant Rate Pumps-Providing power to Drum, Brake and Water System

15. Cabin: Luxury Cabin

16. Bucket Capacity: 0.6 CBM with Hydraulic Controlled Gate

17. Chute: Hydraulically Controlled Adjustable Chute with 15 degree vertical movement and free horizontal movement

18. Brake: Air Brake

19. Tire: 16/70-20 Tire

20. Steering: Hydraulic Rear Wheel Steering

21. Battery: 2x 12V/120Ah Battery for Lighting & Ignition

22. Transmission: YJ280 Torque Converter (Split Type)

23. Fuel Tank Capacity: 147 L

24. Water Tank Capacity: 600 L

25. Operating Weight: 8300 kg

26. Overall Dimension (L x W x H): 7609 x 2360 x 4378mm

Standard Configuration:

4-wheel drive, 2-wheel steering, hydraulic torque converter transmission, dual screen backup camera (reversing camera), tilting drum, rotating beacon light, reversing alarm, radio, electric fan, emergency hammer, hand brake, wearing parts, tool box.

Optional Parts & Functions:

Slewing Drum with 270 degree Discharge, Electronic Weighing System with Printer, Air Conditioning, Radial Tire, and Other Optional Engines, etc.

Note:

1. The technical specifications are for standard models only.

2. Other optional accessories and requirements are available upon request.

3. All photos are for reference only. Machines shown may include optional parts.

4. All specifications and design characteristics are subject to change without prior notice.
