Diversen Gemsa Gemrock Gemrock GDT 2005 租赁

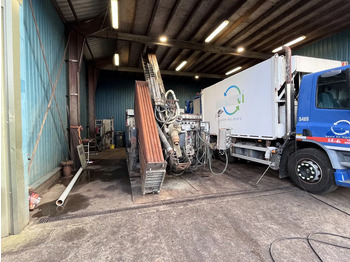

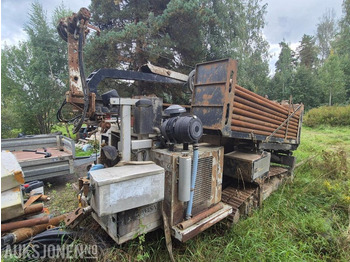

Horizontal/vertical combination drilling rig

fully functional machine.

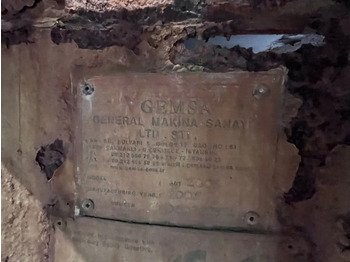

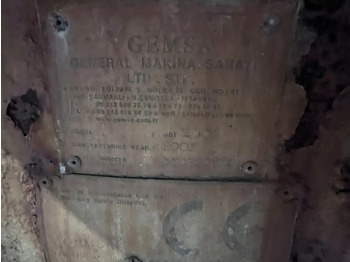

Brand: GEMSA

Type: GEMROCK GDT

Year of construction: 2005

Hours read: 8550

Vertical drilling up to 280 meters

similar Video link: https://youtu.be/drBlXldsBxE

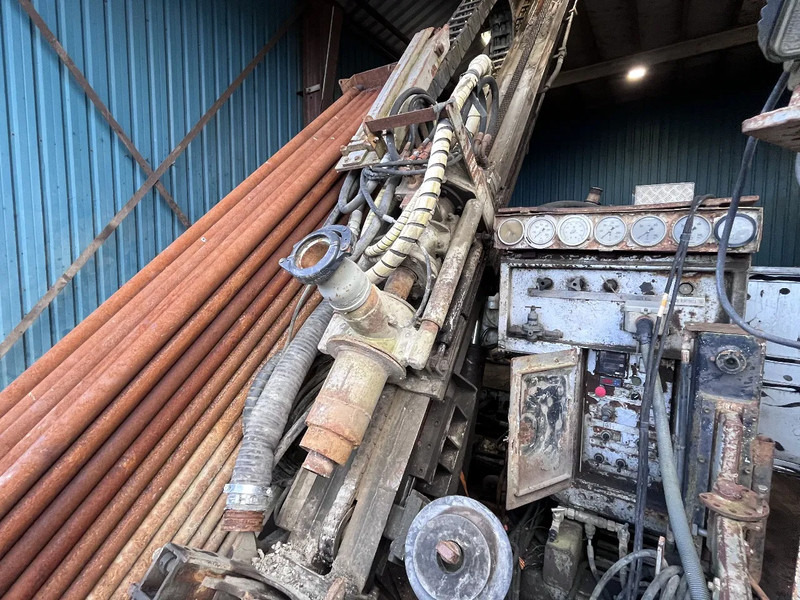

Drill motor: GEMSA MDH

Gear ratio: 1:3

Hydraulic motor: Sauer Danfoss OMT 315

Max yield: Series 3000 NM 0 - 110 rpm / Parallel 6000 nm 0 - 55 rpm

Threaded end: 2.3/8" API

tube diameter 76 / 89 mm 3" - 3.1/2"

Mast construction:

Total length: 7000 mm

Workable length: 3000 mm

Max length 4000 mm

Feed down: 60 meters/min

Feed up: 32 meters / min

Drawbar pull: 100 kn / 10,000 kg

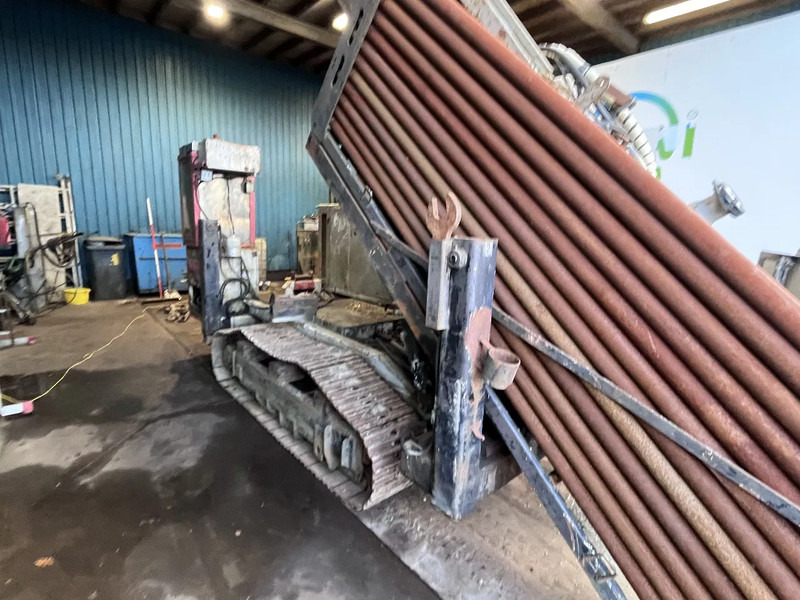

Tube cassette: left side

Maximum capacity: 50 tubes, diameter 89 mm

Working length: 3000 mm

Drive:

Engine: Deutz BF4M1012 turbo 140 hp

Deutz Exchange engine

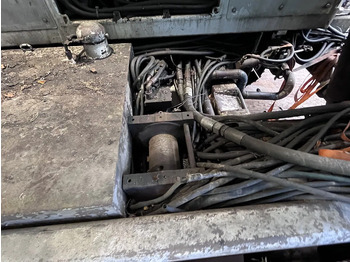

Hydraulics: Sauer Danfoss PVG

Dimensions and weights:

Length: 7000 mm

Width: 2200 mm

Height: 2000 mm

Empty weight: 9,200 kg

Track: BERCO

Track shoes: 400 mm

Air line lubrication system

Working pressure: 8 bar

Capacity: 20 liters

Maximum output pressure: 80 bar

Hydraulically driven generator.

GEMROCK GDT is well known for its high performance in terms of speed, reliability, and long life. Its creative design is based on proven and tried technology, which ensures continuous and uninterrupted operation, even in the harshest conditions. Suitable to adapt narrow environments. GDT Basic Facts:

• Structurally sound strong undercarriages and high strength heavy duty frame for optimal stability and endurance.
• Drilling from horizontal to vertical, 280m 918ft depth capacity with dia. 76 – 89 mm 3”- 3 ½” drill rods.
• Improved safety & work environment, secure drilling and tramming control with optionally multi-functional radio remote controller.
• Powerful, reliable and economical versatile diesel engine. Rating 103 kW 138 hp @ 2400 rpm. Low-emission engine, designed to minimize hydrocarbon spills, reduces the impact on the surrounding environment while lowering running costs.
• Powerful robust mast structure can be easily accessed and maintained. Operator has excellent accessibility for minor and major maintenance work.
• 100kN pull back capacity with speed 32m/min, fast feeding 60 m/min.
• Load-sensing hydraulics and a powerful rotary head GN 350 with up to 6,000 Nm of torque.
• Odex system. Eccentric drilling and casing.

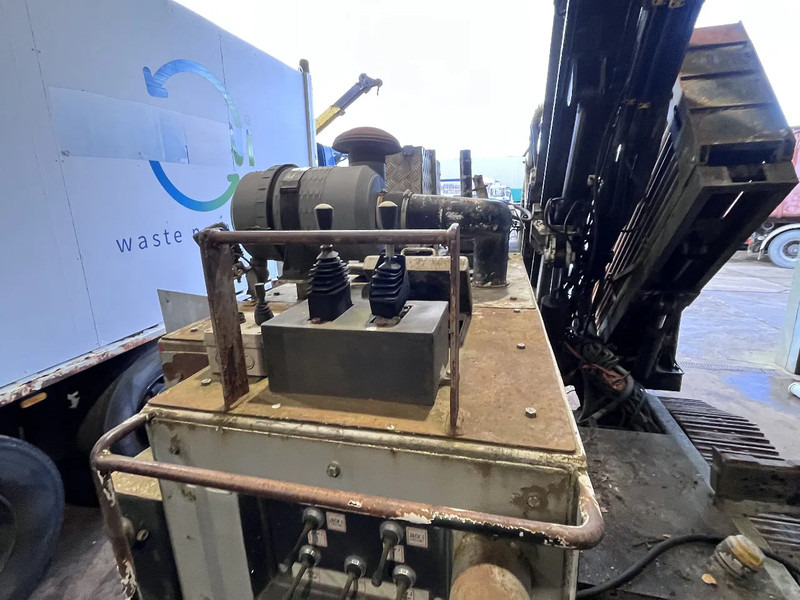

• Fine control of drilling functions, greater flexibility with highly efficient hydraulics.

All our offers can be viewed at Holland Trading Transport and Repair bv, Korte Venen 28, Steenwijk, 8331 TH.

Opening hours: 8:30 AM to 5:00 PM and Saturdays: 9:00 AM to 1:00 PM.

Reach us at +31.641883344 and +31.653862003 or email us at info@holland-trading.com

We sell drilling machines for water drilling or geothermal energy, including the necessary equipment, trucks, low-loaders, semi-trailers, and refrigerated trailers, generators, etc.

For questions and more details, email www.holland-trading.com

More information

Year of manufacture: 2005

Field of application: Construction

Drive: Track

Technical condition: good

Visual appearance: moderate

Damages: none

Track width: 400 mm
