品牌

HORIZON

参考编号

70245

生产年份

2021

所在位置

Germany, Germany, D-97332, Volkach, Im Seelein 8

更多信息

Condition: Very Good

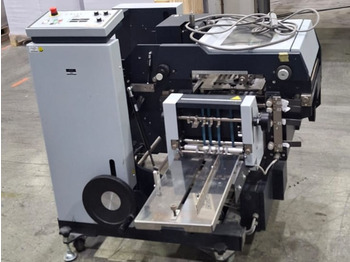

Horizon KTU-40: MOBILE KNIFE FOLDER

Compact knife folding unit for cross and parallel folds, designed for connection to folding machines. Especially suitable for miniature folds. Standard equipment includes one knife and a parallel fold plate, which can be used on the right or left side.

Special Features

- Very robust construction for professional continuous operation

- Standard vertical stack delivery

- Infinitely height-adjustable

- Minimum fold length: 20 mm

- Folding unit including delivery can be swiveled by 45°, enabling safe processing and delivery of long and narrow products (Horizon patent)

- Total and batch counter including kicker

- Easily adjustable folding rollers with 30 mm diameter

- Independent control, operable with various machines

- Variable fold plate after the knife fold

Technical Specifications

- Infeed format (cross fold): Min. W 90 mm x L 20 mm – Max. W 400 mm x L 220 mm

- Infeed format (parallel fold): Min. W 40 mm x L 70 mm – Max. W 220 mm x L 200 mm

- Finished format: Min. W 20 mm x L 22 mm – Max. W 200 mm x L 150 mm

- Fold lengths (folding plate): 20 mm to 110 mm, manual adjustment

- Material thickness: Max. 4 mm

- Speed: 30 to 180 m/min, adjustable manually

- Feed height: Variable between 640 to 880 mm

- Noise emission: 70.1 dB Laeq

- Heat emission: 1,490 kJ (360 kcal)

- Voltage/Frequency: Single-phase AC 230 V / 50 Hz

- Power consumption: 580 W (50 Hz, 220 V)

- Machine dimensions: 1,140 (L) x 1,620 (W) x 1,180 (H) mm

- Machine weight: 410 kg

- Ambient conditions: Temperature 0 to 40 °C

- Relative humidity: 20% to 75%

All-Inclusive Service Package

We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.

Sustainable and Economical

Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
